Examples

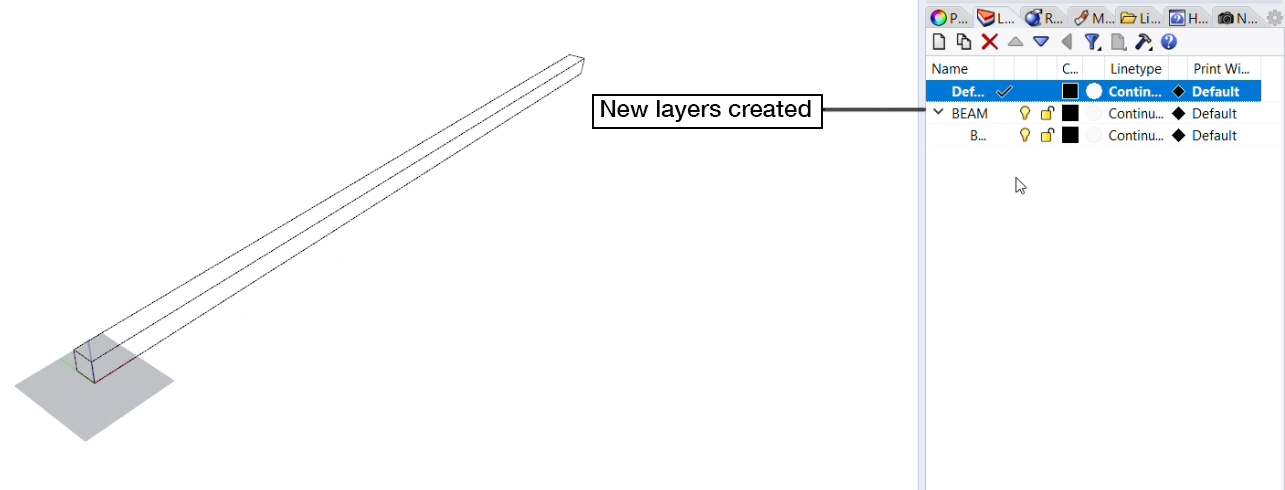

Create Beam

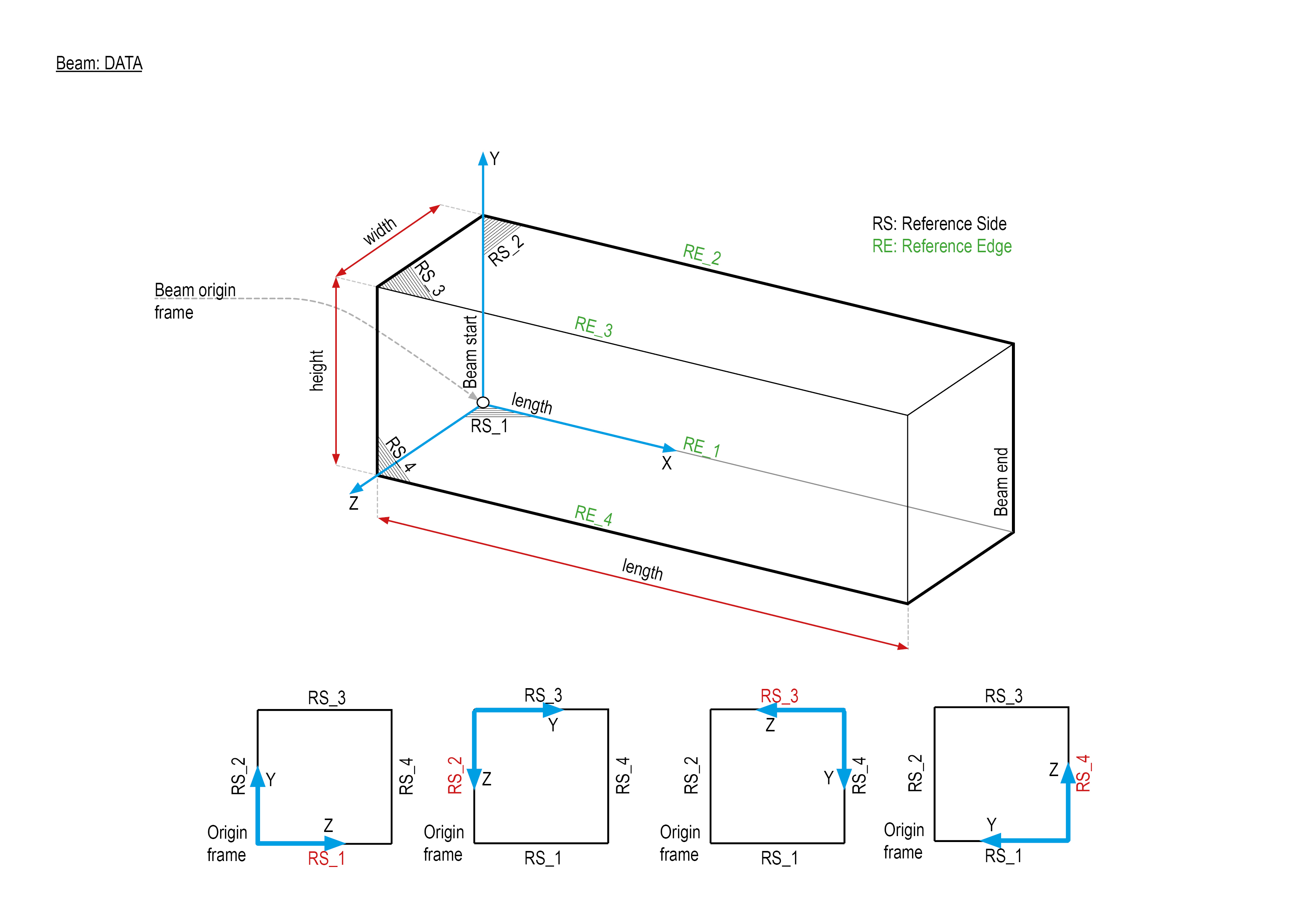

Beam

compas Frame: frame, x-axis: length, y-axis: width, z-axis: height

How to Use

# import libraries
import compas
from compas.geometry import Frame
from timber_grammar.assembly_model import model
from timber_grammar.id_generator import create_id
from timber_grammar import rhino_UI_utilities import utils

print("Test 1: Create beam and save and load model to JSON")

#Load Derivation and model
derivation = Derivation.from_json(rhino_UI_utilities.get_json_file_location())
model = derivation.get_next_step()

# dimensions
frame = Frame.worldXY()
length = 1000
width = 100
height = 100
name = create_id()

# create beams as planes
model.rule_create_beam(frame,length,width,height,name)

#save Derivation
derivation.to_json(rhino_UI_utilities.get_json_file_location(), pretty = True)

# Visualization
artist = MeshArtist(None, layer ='BEAM::Beams_out')
artist.clear_layer()
for beam in model.beams:
    artist = MeshArtist(beam.mesh, layer ='BEAM::Beams_out')#.mesh is not ideal fix in beam and assemble class
    artist.draw_faces(join_faces=True)

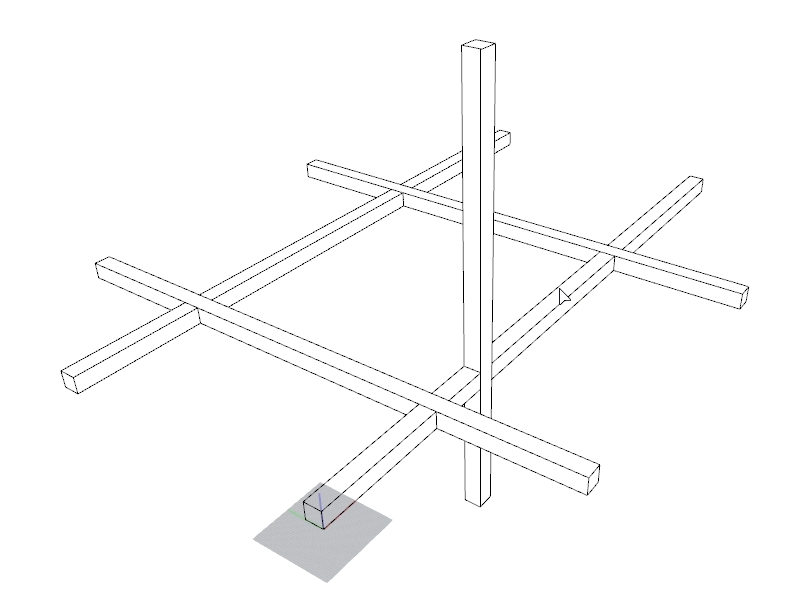

rule 90 Lap

A class 90 Lap joint rule

#find beam instance by name search from model data
selected_beam = None
for beam in model.beams:
    if(beam.name == selected_beam_name):
        selected_beam = beam
        break
assert (selected_beam != None)

#values
face_id = 4
joint_point = Point(100,0,0)
ext_start = 500
ext_end = 1000
name = create_id()

#adding joints to selected Beam
joint_distance_from_start = selected_beam.Get_distancefromBeamYZFrame(joint_point)
match_beam_origin =  model.rule_90lap(selected_beam,joint_distance_from_start,face_id,ext_start,ext_end,name)

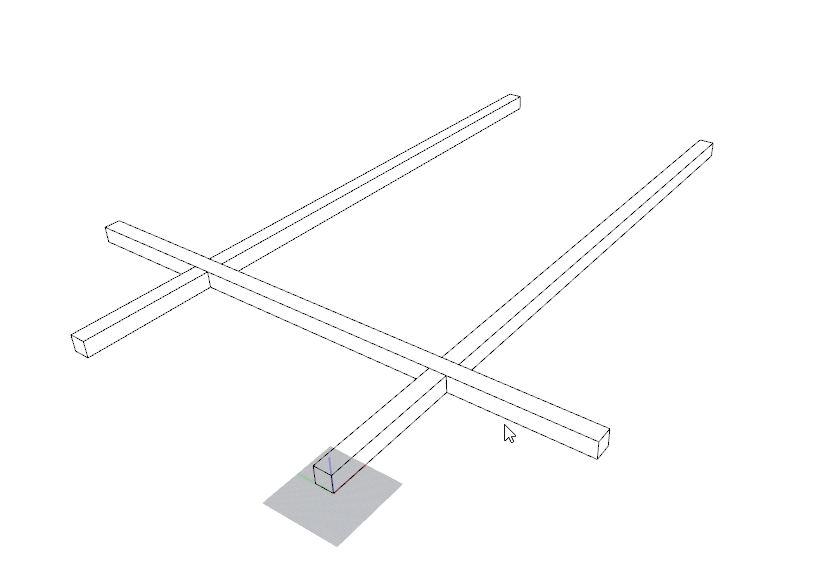

Connect beams

A class for connecting beams with a 90 Lap joint

#list of face_ids of coplanar planes
coplanar_face_ids = []
coplanar_face_ids.append(face_id)
for key,value in face_ids_coplanar_planes.items():
    if key == ""+str(face_id):
        coplanar_face_ids.extend(value)

#project points
projected_point_list = []
new_start_point = project_points_plane([start_point],start_beam_perpendicular_plane)
projected_point_list.extend(new_start_point)
for plane in perpendicular_plane:
   new_point = project_points_plane(new_start_point,plane)
   projected_point_list.extend(new_point)


#list of distance to move joints on match beam
model.rule_Connect_90lap(selected_beams,projected_point_list,coplanar_face_ids,beam_length,ext_len,create_id())

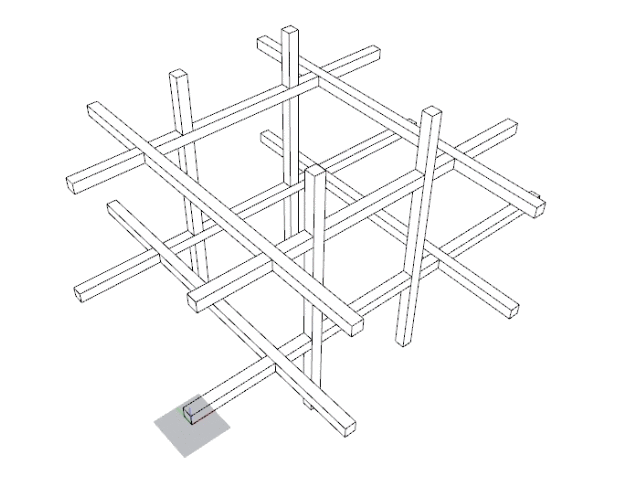

Derivation class

A class for rule derivation history

#load Derivation and delete last step
derivation = Derivation.from_json(rhino_UI_utilities.get_json_file_location())

continue_playback = True
step_id = 0
while(continue_playback):
    #ask user for which step they would like to see
    derivation_last_step_index = derivation.count - 1

    step_id = rs.GetInteger("Enter which step to visualize (0 - "+ str(derivation_last_step_index) + " step) (Enter -1 for last step)", step_id, -1, derivation_last_step_index)
    if (step_id == -1): step_id = derivation_last_step_index
    if (step_id == None): break # Allow user to quite the command

    #load the selected model
    model = derivation.get_step(step_id)
    step_id = step_id + 1
